Basic Specs

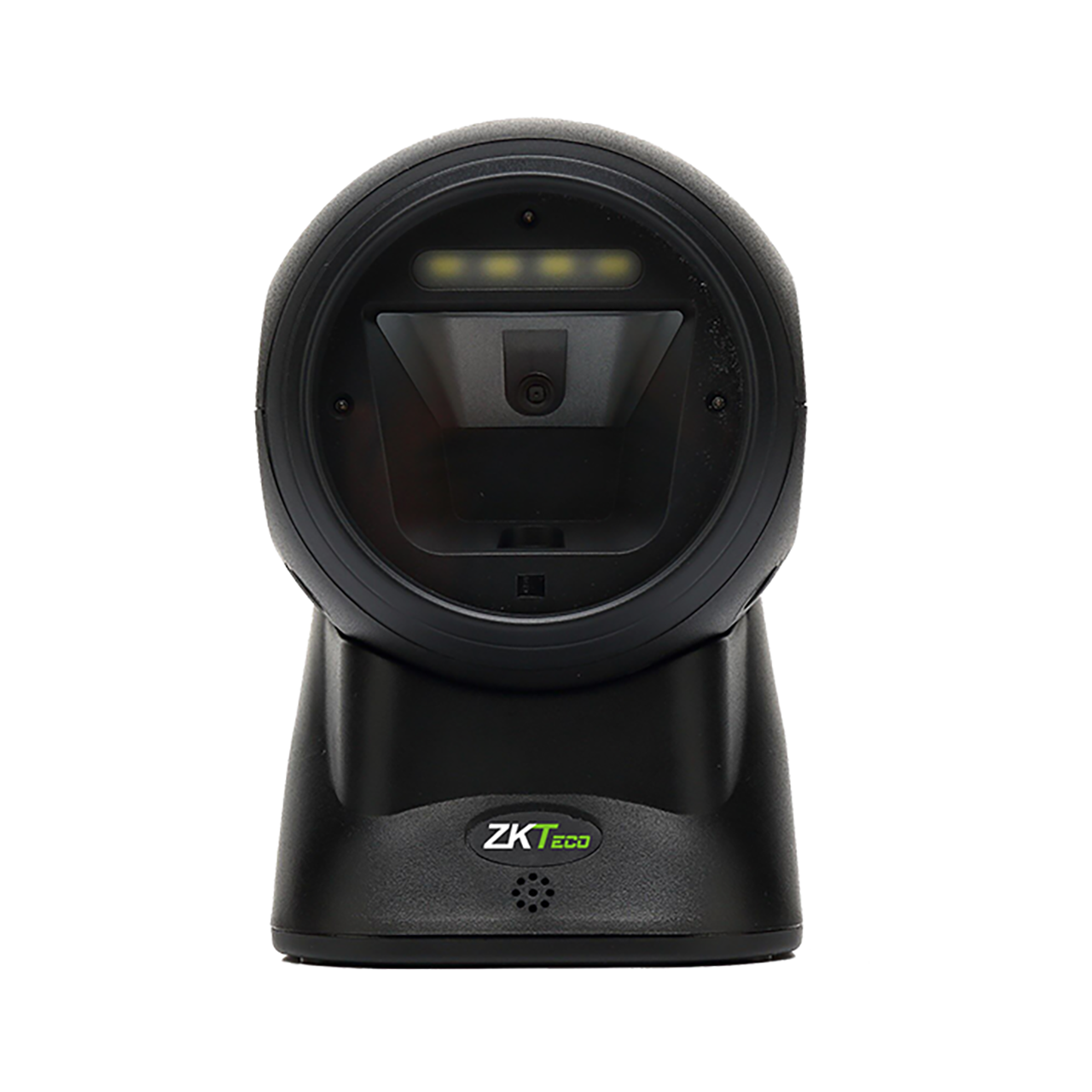

Model Name – ZKB204

Performance & Parameters
Imaging & Sensor – CMOS
Symbol Contrast – >= 30%
Interface – USB HID-KBW,USB virtual port,USB HID-POS,TTL-232,RS-232
Symbologies – 1D:Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited,RSS-Expand) – 2D:PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,050, 080, 100, 140)

Scanning Angle
pitch – ±50° at 0°Roll and 0° Skew
roll – ±360° at 0°Pitch and 0° Skew
skew – ±60° at 0°Roll and 0° Pitch

Physical Parameters
Dimensions – 106mm × 111mm × 155mm
Weight – 320g
Notification – Beep, LED Indicator
Current – operating 240mA
Standby – 190mA

Environmental Parameters
Operating Temperature – -20°C~+50°C (-4°F~122°F)
Storage Temperature – -40°C~+80°C (-40°F~176°F)
Humidity – 5%~95% (non-condensing)
ESD – ±14 kV(air discharge),±8 kV(direct discharge)
Drop – 1.2m drops to concrete (for six sides,one drop per side)
Sealing – IP 52
Certification – FCC Part15 Class B,CE EMC Class B
