Basic Specs

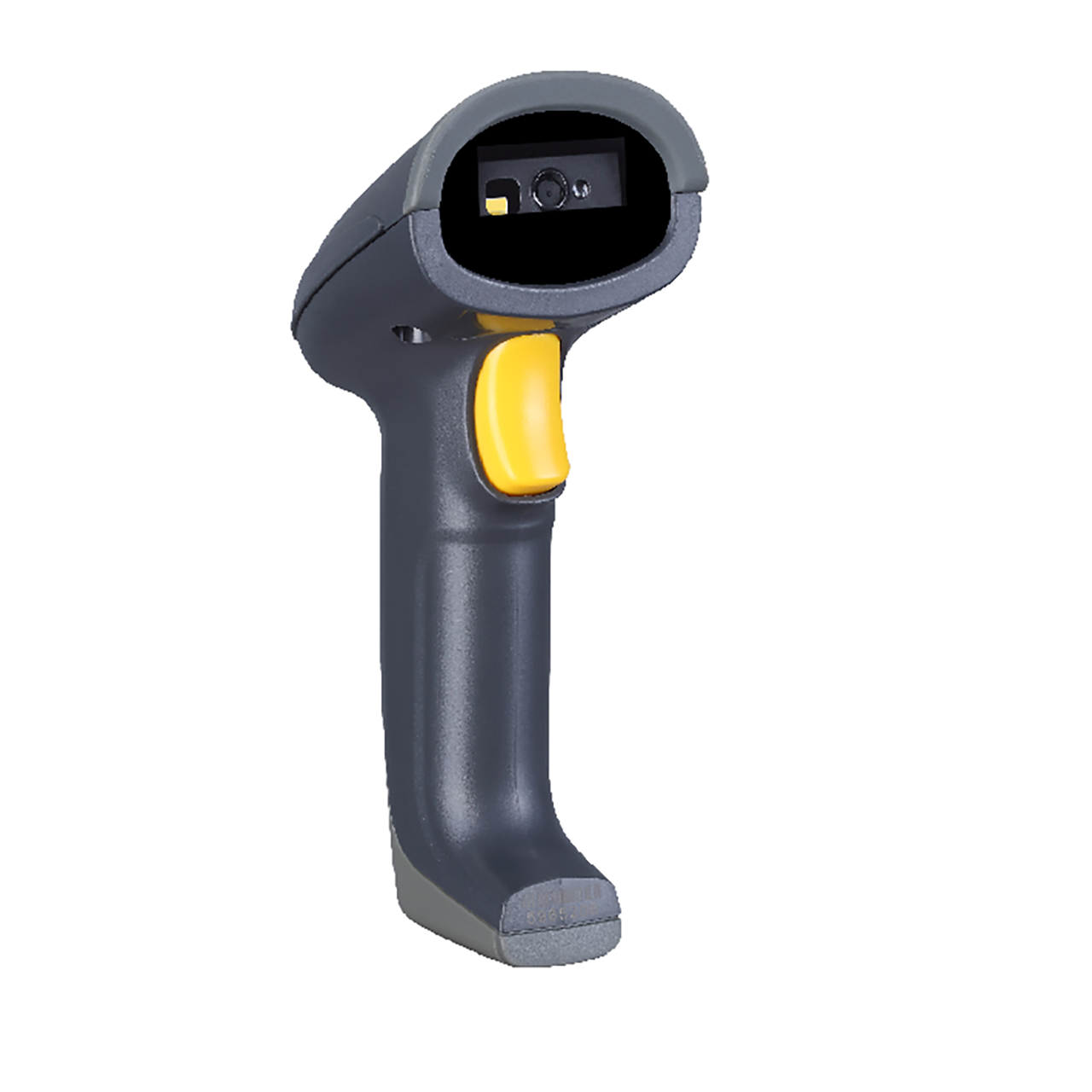

Model Name – ZKB200

Mechanical Characteristics
Dimensions – 76.6 *67.3*168.5 mm (L*W*H)
Weight – 116 g (without cable)
Cable – Straight 2.0 m
Connector Type – RJ-45 phone jack connector
Indicator – Beeper, LED
Interface Supported – RS-232, USB Keyboard, USB virtual COM
Operating Mode – Hand-held, Auto-detection
Programming Method – Manual (reading special barcode)

Electrical Characteristics
Input Voltage – 3.8 – 5.5 VDC
Current – 85 mA (standby) 5 VDC, 265 mA (working) 5 VDC
Scan Performance –
Image Size – 640*480 pixels
Imager Field of View – Horizontal: 40°, Vertical: 30°
Scanning Angle – ±60°, ±40°, 360° (skew, pitch, roll)
Print Contrast – 20% minimum reflective difference
Decoding Capability – 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants
2D: PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code
Minimum Resolution – 21D: 4 mil (Code 128), 2D: 6.7 mil (PDF417)
Decoding Depth – 4 mil Code 128 (9 chars): 40 mm – 70 mm
10 mil Code 39 (3 chars): 20 mm – 185 mm
13 mil UPC (6 chars): 15 mm – 190 mm
20 mil Code 39 (1 char): 45 mm – 320 mm
6.7 mil PDF417 (20 chars): 28 mm – 90 mm
10 mil DM (20 chars): 18 mm – 115 mm
10 mil QR (20 chars): 18 mm – 115 mm
20 mil QR (20 chars): 20 mm – 245 mm

Environmental Characteristics
Temperature – -10°C ~ 50°C (14°F ~ 122°F), operating; -20°C ~ 60°C (-4°F ~ 140°F), Storage
Humidity – 5% ~ 95% (non-condensing)
Safety – EMC: EN55022, EN55024
Electrical Safety: EN60950-1
Sealing: IP50
Photobiological Safety: EN62471:2008
Illumination: 0 ~ 100,000 LUXDrop Resistance: Withstands multiple 2. 0 m (6.6 ft.) drops to concrete
