Basic Specs

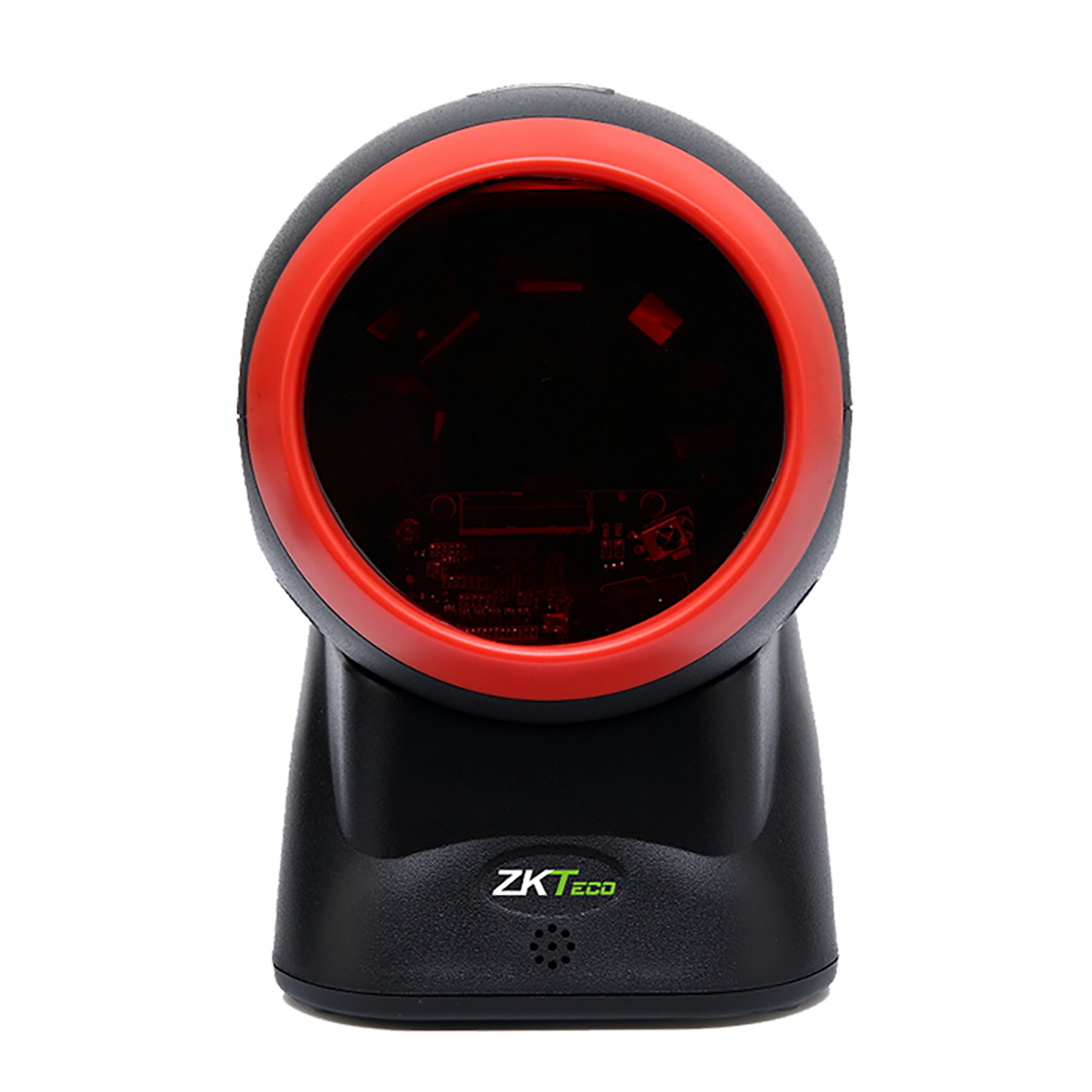

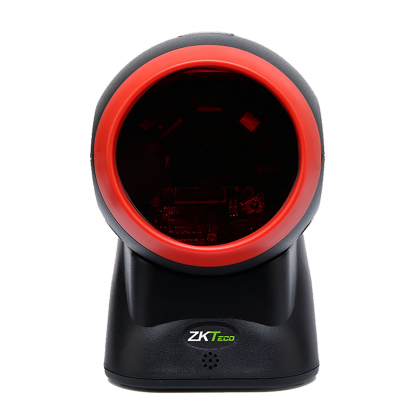

Model Name – ZKB107

Mechanical Characteristics
Dimensions – 100mm × 95mm × 150mm
Weight – 330 g, without cable
Cable – Straight 2.0 m
Connector Type – RJ-45
Indicator – LED
Interface Supported – RS-232, USB Keyboard, USB virtual COM

Electrical Characteristics
Input Voltage – 4.5 – 5.5 VDC
Current – 235 mA

Scan Performance
Scanning speed – 1500 lines/s
Scanning patterns – All-orientation space scanning (20 laser lines ,5 directions)
Print Contrast – 30% minimum rective dierence (UPC/EAN 100%)
Decoding Capability – 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN),ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39,Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5,Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93,Code 11 (USD-8), MSI/Plessey, UK/Plessey.
Minimum Resolution – 0.102mm(4mil) Code 39, PCS=90%
Decoding Depth – 0 mm – 300 mm

Environmental Characteristics
Temperature – operating: -10° to 50°C (14° to 122°F); storage: -20° to 60°C (-4° to 140°F)
Humidity – 5% to 95% (non-condensing)
Safety
EMC: EN55022, EN55024 | Electrical Safety: EN60950-1 | Sealing: IP54
EMI:EN50081 | Drop Resistance: Withstands multiple 1.5 m drops to concrete
