Basic Specs

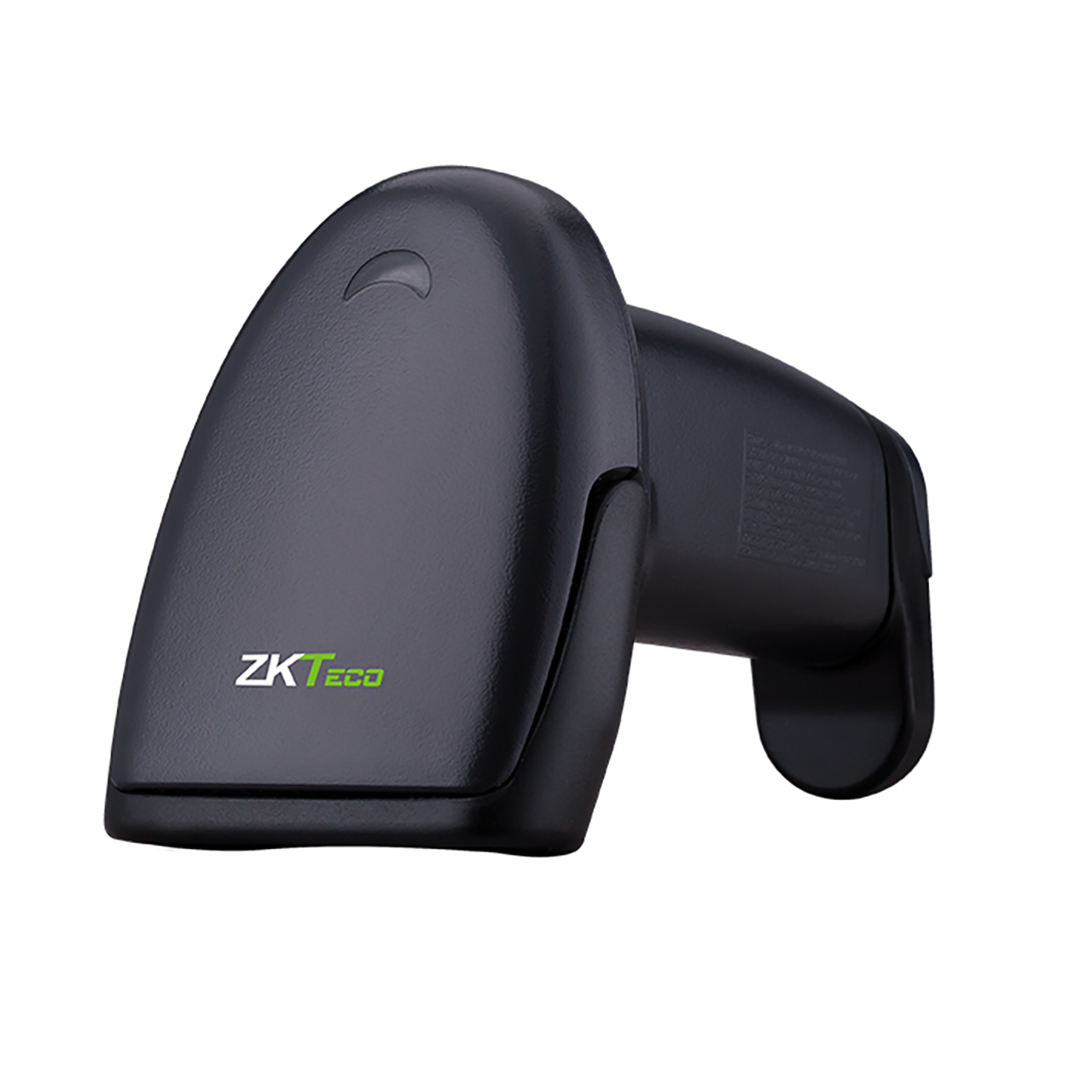

Model Name ZKB101/ZKB102

Kind
ZKB101 – 32-bit red laser scanner.
ZKB102 – 32-bit red light CCD scanner.

Types of Bar Code
EAN / JAN-8; EAN / JAN-13; UPC-A; UPC-E; CODE-128; CODE-93; RSS-Standard;, CODE-39; Interleaved 2/5; Standard 2/5; Matrix 2/5;, Industrial 2/5;China-Post; M: YES; MSI-PLESSEY; CODE-BAR; CODE-11 etc.

Reading depth
ZKB101 – 0-550mm (1.0mm bar code density in tests)
ZKB102 – Maximum 500mm (0.5mm bar code density in tests)
Reading Angle
ZKB101 – Vertical:70 °, Horizontal: 70 °
ZKB102 – Vertical: 60 °, Horizontal: 60 °
Precision
ZKB101 – > = 3mil
ZKB102 – > = 2mil, easy identification of 3mil codes
Decoding Speed
ZKB101 – 300 times / second
ZKB102 – 400 times / second (150% higher than common CCD readers)
Decoding error rate
ZKB101 – 1/8 million
ZKB102 – 1/3 million

Electrostatic Discharge Rate – Download with Contact: 9KV, Air Download: 15KV
Anti-Fall Protection – 1.8m fall-proof
Dimensions – 139.5 * 71.1 * 89.9mm (L * W * H)
Certifications – CE, FCC, ROHS, IP65, IEC60825

Energy
Voltage
ZKB101 – 3.5-5.5V DC
ZKB102 – 4.5-5.5V DC
Operating Current
ZKB101 – 50mA
ZKB102 – 80mA
Current at Rest
ZKB101 – 25mA
ZKB102 – 55mA
Peak Peak
ZKB101 – 100mA
ZKB102 – 120mA
Ultra-low Energy Consumption
ZKB101 – <1mA (rest) (Optional)
ZKB102 – <1mA ( (in suspended mode) )

Interface
USB-HID
ZKB101 – Compatible with USB 1.1 interface or higher.
ZKB102 – Compatible with USB 2.0 interface or higher.
UART
ZKB101 – Transmission speed range 1200-115200 bps
ZKB102 – Transmission speed range 2400-115200 bps

Work environment
Operating Temperature
ZKB101 – -10 ° C ~ + 50 ° C
ZKB102 – 0 ° C ~ + 50 ° C
Storage Temperature
ZKB101 – -20 ° C ~ + 60 ° C
ZKB102 – -20 ° C ~ + 70 ° C
Operational Humidity
ZKB101 – 5% ~ 95% Relative (condensation)
ZKB102 – 20% ~ 95% Relative (non-condensing)
